The V10k™ gas feed system is an efficient, low-capacity gas feeder for up to 15 kg/h with a standarized flexible design that provides a variety of configurations.
The V-notch consists of a precision grooved plug that slides through an annular seat. Any position of the plug in the seat results in a specific orifice size and a corresponding feed rate. The large size and configuration of the orifice resists fouling from contaminants in the gas supply. This results in accurate gas flow control and excellent repeatability. Control of this V-notch can be from simple manual operation up to sophisticated automatic control schemes.
All-vacuum operation ensures highest safety
The complete V10k™ gas system operates under a vacuum. A vacuum regulating valve at the gas supply container reduces gas pressure to a vacuum at once.
Easy readability
The use of large size rotameters provides the highest degree of resolution for accurate indication of feed rate, unmatched by any other manufacturer in a similar capacity gas feed system. The large scale on the rotameter combined with the white background of the mounting frame enhance the resolution.

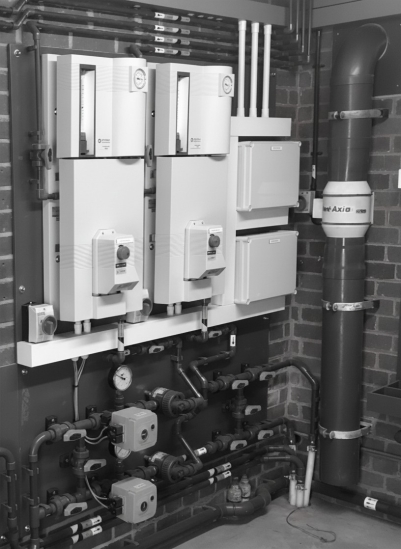

Convenient, wall mounted design
The V10k system is designed for the operator’s convenience. Unlike cylinder mounted gas feeders, the components of the control unit are mounted securely on a wall mounting panel. This provides a stable control platform that simplifies the installation of gas and electrical lines and protects the fragile rotameter from constant handling every time the gas supply is changed. Open-panel mounted components provide for servicing without the need to remove the entire unit from the wall. There is adequate room around the components so that each can be easily taken apart and serviced on the panel.
